字母C打頭表示采用美國軍標生產的產品 第二位數字所表示的含義:
0-覆銅箔層壓板類(目前公司沒有生產該類產品)
1-模壓管(C812.2C812.3 酚醛紙模壓管，C813.2 酚醛棉布模壓管)
2-紙層壓板(F820、F820-2、F820-3B、F821、 F823、F826、F827
3-普通玻璃布層壓板(F831、F831N三聚氰胺板、F834酚醛玻璃布板等)
4-復合型層壓板（F842紙棉布復合層壓板）
5-酚醛棉布層壓板（F851、F853等）
6.-耐高溫玻璃布層壓板(F860二苯醚板、F861雙馬來酰亞胺等)
7-不飽和聚酯樹脂玻璃氈層壓板(F870--GPO-3)
8-環氧玻璃布層壓板(F880系列、F880A系列等)
9-暫為空號以字母F 和3位數字表示
B 表示黑顏色紙板
S 表示耐磨棉布板
A表示基材用電子級玻璃布

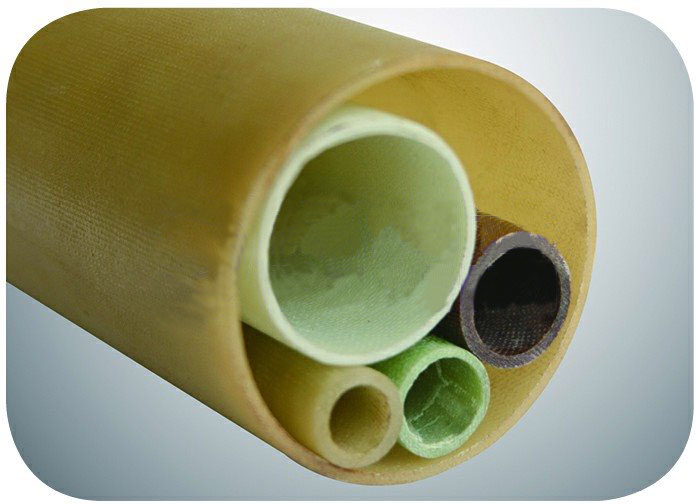

層壓絕緣管
型號：酚醛紙管3520；酚醛棉布管:3526、PFCC21、PFCC22、PFCC23、PFCC24
環氧玻璃布管：3640、EPGC21、EPGC22、EPGC23
特性及應用：機械強度高，電性能好，機械電氣用
Tubes
Phenolic paper tube 3520；Phenolic cotton tube 3526；
Epoxy glass cloth tube 3640／EPGC21／EPGC22／EPGC23
Characteristics＆applications：tubes exhibit high mechanical strength，good electrical properties，
for electrical and mechanical applications.

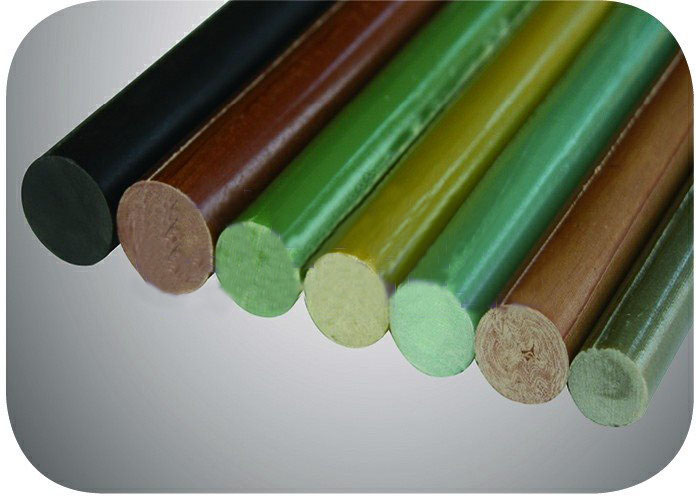

層壓絕緣棒
型號：環氧玻璃布棒3840、3841、3841F(FR4)、3842、EPGC41、EPGC42、EPGC43等
酚醛棉布棒3721、3721-1、3722(C)、3723(C E)、3724(L)、3725(LE)、PFCC41、PFCC42、PFCC43
特性及應用：機械強度高，電性能好，機械電氣用
Rods
Epoxy glass fabric molded rod：3840／3841／3841F(FR4)／3842／EPGC308 rod
Phenolic cotton rod：3721／3721-1／3722(C)／3723(CE)／3724(L) ／3725(LE)
Characteristics＆applications：rods exhibit high mechanical strength，good electrical properties，
for electrical and mechanical applications
酚醛紙層壓板
型號：企標系列：3021、3021B、3021C
國標（IEC）系列：PFCP201、PFCP202、PFCP203、PFCP204、PFCP206、PFCP207
NEMA系列：C825.1(X)、C825.2(XX)、C825.3(XXX)、C825.4(XP)、C825.5(XXP)、C825.6(XXXP)、C825.7(XPC)、C825.8(XXXPC)
特性及應用：應用范圍廣泛，可用于電子、配電柜、電機及其它電氣設備中，做絕緣結構零部件
Phenolic Paper Laminate sheet
National standard series：3020／3021series (3021／3021B／3021C)
IEC series：PFCP201／PFCP202／PFCP203／PFCP204／PFCP206／PFCP207
NEMA series：X／XP／XX／XXP／XXX／XXXP／FR1
F820 series：F820-2、F820-3B、F820-5K、F822
Characteristics＆applications：laminates can widely be used for insulation and mechanical support in various electrical equipments like switch board，motor，etc.
酚醛棉布層壓板
型號：企標系列：3025系列(3025、3025B、3025C)、3026、3027、3028
國 標（IEC）系列：PFCC201、PFCC202、PFCC203、PFCC204
NEMA系列：C850.1(C)、C850.2(CE)、C850.3(L)、C850.4(LE)
特性及應用：在常態下具有良好的電氣性能和機械性能。廣泛適用于機械、電機、電器設備中作絕緣結構零部件，并可在變壓器油中使用。高等級的酚醛棉布板材適用于制作膠布齒輪軸瓦、導向輪等需要在惡劣環境中使用的精密機械制品零件
Phenolic Cotton Fabric Laminated Sheet：
National Standard series：3025 series (3025／3025B／3025C)／3026／3027／3028
IEC series：PFCC201／PFCC202／PFCC203／PFCC204
NEMA series：F850(C)／F851(CE)／F852(L)／F853(LE)
Characteristics＆applications：laminates offer good electrical and mechanical properties under normal conditions, widely supply insulation and mechanical support in various electrical equipments, also can be used in transformer oil. Superior grade laminates can be used in harsh environments where precision machinery products are required like gear running, friction wheel, etc.
環氧玻璃布層壓板
型號：企標系列：3240N、3240、3240-1、3240-3
N EMA系列：F880A(G10)、F881A(FR4)、F882A(G11)、F883A(FR5) 、CEM-1
國標（IEC）系列：EPGC201、EPGC202、EPGC203、EPGC204、EPGC205、EPGC306、EPGC307、EPGC308
特性及應用：具有較高的機械強度和電氣性能，耐濕性好，應用范圍廣泛，可用在發電機、電動機等電力設備中用作絕緣結構件
Epoxy Glass Fabric Laminated Sheets：
3240 series：3240N／3240／3240-1／3240-3
NEMA series：F880A(G10)／F881A(FR4)／F882A(G11)／F883A(FR5)／CEM-1
IEC series：EPGC201／EPGC202／EPGC203／EPGC204／EPGC205／EPGC306／EPGC307／EPGC308
Characteristics＆applications：these laminates have good mechanical strength and electrical properties，
good moisture resistance, ideal for a wide variety of product applications, like in generator, motor and
other electrical equipments as insulation structural parts.
C850.2酚醛棉布層壓板
特性：具有優異的機械性能和電氣性能，耐濕性好。相當于N E MA標準的C E
應用：機械及電氣用，可用做機械結構零部件和電氣設備絕緣結構零部件
厚度：1～50mm
標稱尺寸：1020 x 1220mm;1020 x 2040mm;1220 x 2470mm
C850.2 Phenolic Cotton Fabric Laminate
Characteristics：F851 supplies excellent mechanical and electrical properties, good moisture resistance, similar to NEMA CE
Applications：F851 is used as mechanical structural parts , and insulation structural parts in electrical equipment．
]Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020 X 1220mm,1020 X 2040mm,1220 X 2470mm
F822低介損紙板
特性：酚醛紙層壓板，具有優良的電氣絕緣性能，介電性能優異，介質損耗小于0.03應用：互感器行業
厚度：0．5～50mm
標稱尺寸：1020 x 2040mm
F822 Phenolic Paper Laminated Sheet (Low dissipation factor)
Characteristics & Applications：F822 offers excellent electrical properties, dissipation factor less than 0.03 (1MHz)，widely applied in mutual inductor industry
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020 x 2040mm

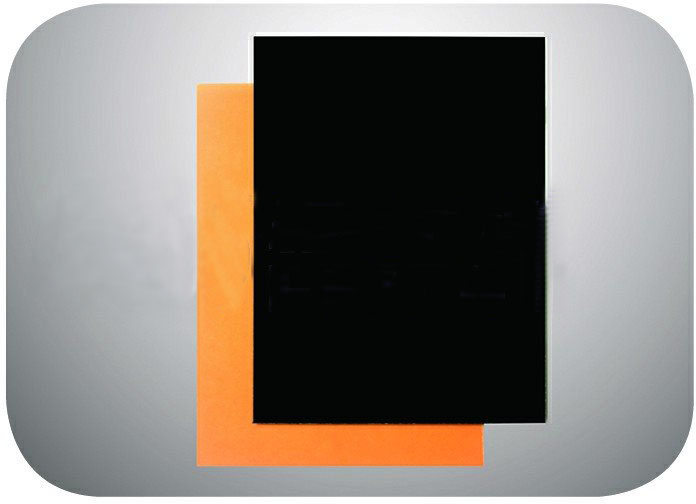

PFCP207冷沖板
特性：酚醛紙層壓板，類似于PFCP201，顏色有棕色、黑色，在更低溫度下有改進的沖剪性
U L認證號：E243249
應用：電子、電氣用
厚度：0.5～3mm
標稱尺寸：1020 x 1220m m
PFCP207 Phenolic Paper Laminated Sheet (could punch)
Characteristics: PFCP207 is similar to PFCP201 but with improved punching characteristics at lower temperatures
Color: brown / black
UL Recognition File Number：E243249
Applications：PFCP207 is used for electrical and electronic applications
Thickness：0.5 - 5mm
Standard Sheet Sizes: 1020 X 1220mm

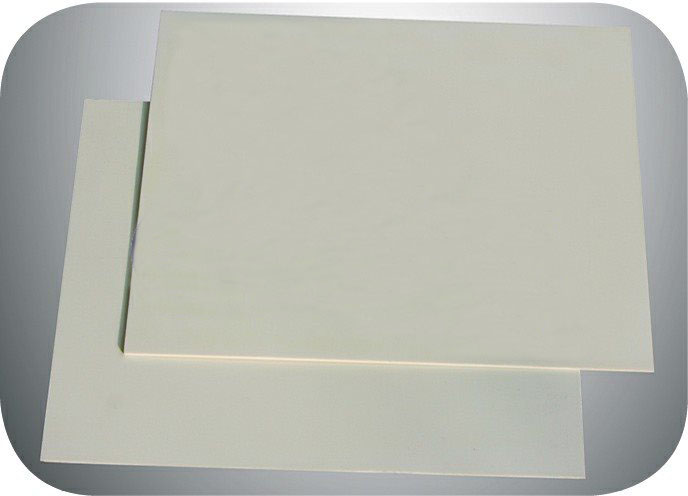

F832 (G5)三聚氰胺玻璃布層壓板
特性：阻燃，具有優良的耐電弧性能，相當于N EMA標準的G 5型號
用途：機械、電氣用
厚度：05～50m m
標稱尺寸：1020 x 2040m m
F832 (G5) Melamine Glass Fabric Laminated Sheet
Characteristics：F832 exhibits excellent arc resistance, flame resistant，similar to the NEMA G5
Applications：F832 is used for mechanical and electrical applications
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020 X 2040mm
F820-5 K/-6K/-2/-3B酚醛電木板
特性：F820-2、F820-3B機械強度高、加工性能好。F820-5K/-6K為防靜電電木板，具有良好的抗靜電性能
用途：機械、電子、電氣用，可用于制作SMT技術工作臺面、測試臺面、PCB測試治具、夾具等電子行業設備零部件
厚度：1～50m m
標稱尺寸：1020x 1220mm；1020 x 2040mm；1220 x 2470mm
F820-5K／F820-6K／F820-2／F820-3B Phenolic Paper Laminated Sheet
Characteristics：F820-2 and F820-3B have high mechanical strength and good machinability；F820-5K/-6k and F820-6K especially exhibit good anti-static performance.
Applications：these materials are designed for mechanical, electrical and electronic applications．They can be used as SMT countertop, test plate, fixture for PCB test, and some other parts in electronic equipment
Thickness：1 - 50mm
Standard Sheet Sizes: 1020X1220mm；1020X2040mm；1220X2470mm
F884半導體防電暈環氧玻璃布層壓板
特性：類似于3240板，具有半導體性質、防電暈
耐熱等級：B級
用途：機械、電氣用，適用于大型電機槽內的防暈材料，并可作為在較高溫度下非金屬結構零部件材料
厚度：0．4-12 mm
標稱尺寸：1020 x 2040mm
F884 Epoxy Glass Fabric Laminated Sheet (Semi-conductive)
Characteristics：F884 is a laminate similar to 3240 but it’s semi-conductive and anti-corona.
Thermal Class：B (130℃)
Applications：F884 is used for mechanical and electrical applications. As anti-corona material it can be used in Iarge motor slots as well as non-metallic structural parts at high temperatures
Thickness：0.4 - 12mm
Standard Sheet Sizes: 1020 X 2040mm
F883A(FR5)阻燃環氧玻璃布層壓板
特性：常溫下機械強度高，高溫1 5 5℃下仍有較強的機械強度，干態、濕態下電氣性能好，
V0級阻燃，相當于N EMA標準的FR5
用途：機械、電氣、電子用
厚度：0．3～100m m
標稱尺寸：1020x 1220mm；1020 x 2040mm；1220 x 2470mm
F883A (FR5) Epoxy Glass Fabric Laminated Sheet
Characteristics：F883A offers high mechanical strength at room temperatures, maintains good mechanical strength at 155℃, good electrical performance under both dry and wet conditions, meets UL 94 V-0, similar to NEMA FR5．
Applications：F883A is designed for mechanical, electrical and electronic applications
Thickness：0.3 - 100mm
Standard Sheet Sizes: 1020 x 1220mm;1020 x 2040mm;1220 x 2470mm
F882A(G11)環氧玻璃布層壓板
特性：常溫下機械強度高，高溫155℃下仍有較強的機械強度，干態、濕態下電氣性能好，相當于NEMA標準的G11
用途：機械、電氣、電子用
厚度：0．3～100m m
標稱尺寸：1020 x 2040mm；1220 x 2470mm
F882A (G11) Epoxy Glass Fabric Laminated Sheet
Characteristics：F882A exhibits high mechanical strength at room temperatures, maintains good mechanical strength at 155℃, good electrical performance under both dry and wet conditions, similar to NEMA G11.
Applications：F882A is designed for mechanical, electrical and electronic applications
Thickness：0.3 - 100mm
Standard Sheet Sizes: 1020 x 2040mm, 1220 x 2470mm
F881A(FR4)阻燃環氧玻璃布層壓板
特性：常溫下機械強度高，干態、濕態下電氣性能好，V0級阻燃，相當于N EMA標準的FR4
U L認證號：E243249
用途：機械、電氣、電子用
厚度：0．3～100mm
標稱尺寸：1020x 1220mm；1020 x 2040mm；1220 x 2470mm
F881A (FR4) Epoxy Glass Fabric Laminated Sheet
Characteristics：F881A gives high mechanical strength at normal temperatures, good electrical performance under both dry and wet conditions, flammability UL 94 V-0, similar to NEMA FR4．
UL Recognition File Number：E243249．
Applications：F881A is designed for mechanical, electrical and electronic applications.
Thickness：0.3 - 100mm
Standard Sheet Sizes: 1020 X 1220mm, 1020 X 2040mm, 1220 X 2470mm
F896高CTI-PTFE環氧玻璃布板
特性：本產品以耐高溫薄膜和環氧玻璃布熱壓而成具有耐高溫、耐磨特性，CTI≥600
耐熱等級：H級
應用：適用于發電機轉子護環絕緣
厚度：0．5～50m m
標稱尺寸：1020x 1220mm;1020 x 2040mm
F896 PTFE Epoxy Glass Fabric Laminated Sheet (High CTI)
Characteristics：F896 is combined by high thermal PTFE film and glass fabric by hot pressing, in good performance of high thermal endurance and wear resistance, CTI more than 600.
Thermal Class：H (180℃)
Applications：F896 is used in rotors of generators
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020x1220mm, 1020X2040mm
F889.1 環氧玻璃布層壓導磁板
特性：非絕緣用途層壓板，有較高的機械強度和耐熱性，具有導磁特性
耐熱等級：F級
用途：用于電機的磁性槽口、槽楔
厚度：2～8mm
標稱尺寸：1020x1220mm
F889.1 Epoxy Glass Fabric Laminated Sheet (Magnetic)
Characteristics：F889.1 is non-insulation material. It has high mechanical strength, thermal endurance as well as good magnetic conductivity.
Thermal Class：F (155℃)
Applications：slot wedges for induction motors
Thickness：2 - 8mm
Standard Sheet Sizes: 1020 X 1220mm
F865苯并嗯嗪玻璃布層壓板
特性：耐高溫阻燃絕緣板，具有優良的電氣性能與熱態機械強度保持率，同時具有較好的阻燃性和耐磨性（注意排版中字體大小格式一致）
耐熱等級：F級
用途：適用于耐高溫要求的電機、電器設備中作絕緣及阻燃要求的絕緣結構件以及耐磨機械零件
厚度：0．5～50m m
標稱尺寸：1020x 1220mm；1020*2040mm
F865 Benzoxazine Glass Fabric Laminated Sheet
Characteristics：F865 gives good thermal endurance, flame and wear resistant, excellent electrical properties and maintaining of mechanical strength at elevated temperatures.
Thermal Class：F (155℃)
Applications：F865 is used as insulation structural part for applications like motors and electrical equipments that requests high thermal endurance as well as friction part.
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020x1220mm, 1020X2040mm
F882A.2環氧玻璃布層壓板
特性：棕色，具有優異的電氣、機械性能，尤其在耐電壓、高溫機械強度保持率方面，具有突出的特性
耐熱等級：F級，類似于3248
用途：適用于F級高壓電機、牽引電機、輸變電設備中的槽楔及絕緣結構件
厚度：0．5～50mm
標稱尺寸：1020 x 1220mm；1020 x 2040mm；1220 x 2470mm
F882A.2 Epoxy Glass Fabric Laminated Sheet
Color: brown
Characteristics：F882A.2 has excellent electrical and mechanical properties，especially in performance against impact of voltage, maintain high mechanical strength at elevated temperatures.
Thermal Class：F (155℃), equal to 3248
Applications：F882A.2 can be used as slot wedge and insulation structural part in class F motors,，traction motors and electric transmission and transformation equipments.
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020x1220mm, 1020 X 2040mm, 1220 X 2470mm
F875環氧玻璃氈層壓板
特性：具有較高的機械性能、電氣性能，較高的耐漏電起痕性能，各向同性，加工性能好。
耐熱等級：H級
用途：適用于H級電機設備中做絕緣結構零部件以及其他用途
厚度：1.5-100mm
標準尺寸：1020 X 1220mm、1020 X 2040mm
F875 Epoxy Glass Mat Laminated Sheet
Characteristics:F875 provides high mechanical and electrical properties, good performance against tracking, isotropy with good machinability.
Applications: A good choice for insulation structural part in class H motor, and other applications.
Thickness: 1.5 - 100mm
Standard Sheet Sizes: 1020 x 1220mm, 1020 x 2040mm
F876(EPGM203)環氧玻璃氈層壓板
特性：各向同性，加工性能好，熱態機械強度高，高濕度下電性能穩定
耐熱等級：F級
用途：機械、電氣用，適用于H級電機、變壓器、電器設備絕緣結構件，用于螺桿螺母的加工
厚度：0.5～50mm
標稱尺寸：1020 x 1220mm
F876 (EPGM203) Epoxy Glass Mat Laminated Sheet
Characteristics：typical characteristic is isotropy, good machinability, high mechanical strength at elevated temperatures，stable electrical properties in high humidity.
Thermal Class：F (155℃)
Applications：F876 is a laminate for mechanical and electrical applications. It is a good choice using as insulation structural part in class H motor, transformer, and electrical equipment, especially machined to screw and nut．
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020 X 1220mm
F894有機硅樹脂玻璃布層壓板
特性：具有較高的機械強度，耐電弧，耐熱，介電性能良好，長期工作溫度≥180℃耐熱等級：H級
用途：適用于H級電機槽楔墊塊、電子用高絕緣結構零部件以及在高溫下用作耐電弧絕緣結構零部件
厚度：0．4～30mm
標稱尺寸：1020 x 1220mm；1020*2040mm
F894 Silicone Glass Fabric Laminated Sheet
Characteristics：F894 has high mechanical strength, good performance against electric arc and tracking, good dielectric properties and heat resistance. Long-term operating temperature 180℃.
Thermal Class：H (180℃)
Applications：F894 can be used as wedge slot block for class H motor, insulation structural part in electronic application, and structural part against electric arc at elevated temperatures.
Thickness：0.4 - 30mm
Standard Sheet Sizes: 1020 X 1220m m；1020 X 2040mm
FBMIGC301.1改性雙馬來酰亞胺玻璃布層壓板
特性：具有較高的機械、介電性能，具有耐熱性及耐幅射性。長期工作溫度≥180℃
耐熱等級：H級
用途：機械電氣用，適用于作電機絕緣及槽楔、碳刷支架、電器設備等絕緣結構零部件
厚度：0．4～50m m
標稱尺寸：1020x 1220mm；1020 x 2040mm
FBMIGC301.1 Modified Bismaleimide Glass Fabric Laminated Sheet
Characteristics：FBMIGC301.1 offers high mechanical and dielectric properties, heat and radiation resistance, Long-term operating temperature more than 180℃.
Thermal Class：H (180℃)
Applications：FBMIGC301.1 is a laminate for mechanical and electrical applications. Typical applications include insulation for motors, slot wedges, brush holder, electrical equipment, etc.
Thickness：0.4 - 50mm
Standard Sheet Sizes: 1020 X 1220mm；1020 X 2040mm
F890.1無鹵阻燃環氧玻璃布層壓板
特性：具有良好的電器絕緣性能，CTI指數600M，無鹵素阻燃；在180℃下具有良好的機械性能
耐熱等級：H級
U L認證號：E243249
用途：機械、電氣用，適用于H級電機、變壓器、碳刷支架、軌道機車等絕緣結構零部件
厚度：0．5～50mm
標稱尺寸：1020x 1220mm;1020x2040mm
F890.1 Epoxy Glass Fabric Laminated Sheet
Characteristics：F890.1 is recommended if good electrical properties are required, CTI 600, halogen-free, flame resistant, good mechanical properties at 180℃.
Thermal Class：H (180℃)
UL Recognition File Number：E243249
Applications：F890.1 is a laminate for mechanical and electrical applications, especially machined as insulation structural parts in class H motor, transformer, brush holder, railway industry, etc.
Thickness：0.5 - 50mm
Standard Sheet Sizes: 1020 X 1220mm；1020 X 2040mm
EPGC308 環氧玻璃布層壓板
特性：熱態機械強度高，高濕度下電性能穩定，性能類似于EPGC203，改進了耐熱性
耐熱等級：H級
用途：機械、電氣用，適用于H級電機、變壓器、碳刷支架、軌道機車等電器設備絕緣結構零部件
厚度：0.5~50 mm
標稱尺寸：1020x1220mm；1020x2040mm；1220×2470mm

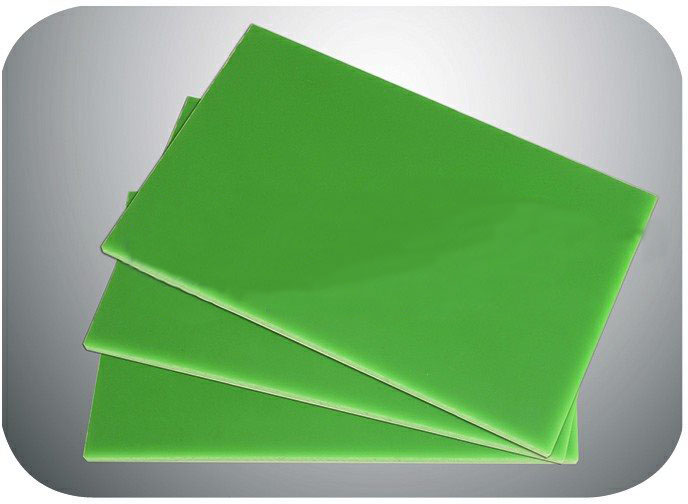

EPGC308 Epoxy Glass Fabric Laminated Sheet
Characteristics：EPGC308 provides high mechanical strength at elevated temperatures,stable electrical properties in high humidity, similar to EPGC203 but with improved heat resistance．
Thermal Class：H (180℃)
Applications：EPGC308 is a laminate for mechanical and electrical applications, especially machined as insulation structural parts in those areas like class H motor, transformer, brush holder, railway industry, etc.
Thickness：0.5 - 50mm
Standard Sheet Sizes：1020 X 1220mm；1020 X 2040mm；1220 X 2470mm
