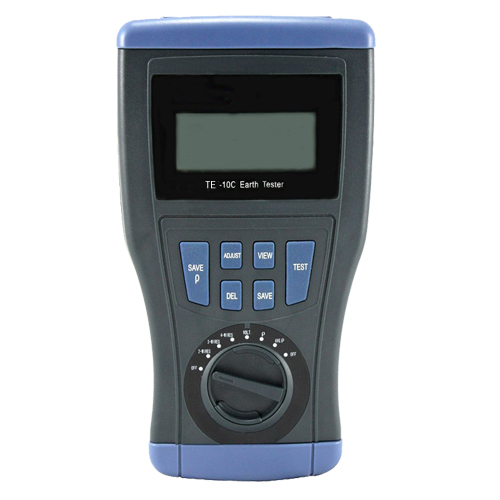

TE-10C Digital Earth Tester is digital precision earth resistance tester for electrical contractors, utility test engineers and earth test specialists. It is handheld, small size, rugged design, and easy-to-use.
Key Features:
2-pole measurement does not require the auxiliary ground stake; it is easy-to-use.
Measure earth resistance and soil resistivity by 3-pole and 4-pole measurements
Measure AC voltage.
To test resistance on-service and off-service
Clearly read and record data
Removing wire resistance while 2-pole and 3-pole, ensure accurate measurements.
Over measurement range indication.
Automatically stop measurement while incorrect operation
Measurement Range
Earth resistance (Re) by 2-pole, 3-pole and 4-pole
|
Re Range (Ω) |
Resolution (Ω) |
Accuracy |
|
0~19.99 |
0.01 |
± (2％+2d) |
|
20~199.9 |
0.1 |
± (2％+2d) |
|
200~1999 |
1 |
± (2％+2d) |
Soil resistivity (ρ) measurement
|
ρ Range (Ω) |
Resolution(Ω) |
Accuracy |
|
0~19.99 |
0.01 |
± (2％+2d) |
|
20~199.9 |
0.1 |
± (2％+2d) |
|
200~1999 |
1 |
± (2％+2d) |
|
2.00K~19.99K |
10 |
± (2％+2d) |
|
20.0K~125.6K |
100 |
± (2％+2d) |
AC voltage measurement
|
Range (V) |
Resolution(V) |
Accuracy |
|
0~400 |
1 |
± (2％+2d) |
Technical Specifications
|
Resistance Measurement Range |
0~2000Ω |
|
Resolution |
0.01Ω |
|
Accuracy |
± (2％+2d) |
|
Voltage Measurement |
<80V，sine wave |
|
Current Measurement |
≤10 mA |
|
Frequency Measurement |
125Hz±1Hz |
|
Measurement Result |
average value of 2 times or 5 times |
|
Maximum Removing Wire Resistance |
5Ω |
|
LCD dimension |
3.5 bits, height of character: 19mm |
|
Memory Capacity |
15 data |
|
Voltage Measurement Range |
0~400V, resolution: 1V |
|
Insulation Intensity |
2500V |
|
Power Supply |
4 x 1.5V AA alkaline battery |
|
Size (L x W x H) |
260×145×60 (mm) |
|
Weight |
1kg (about 3kg with all accessories) |
|
Safety and environment condition |
IP54; IEC10101-1; EMC 50081-1, 50082-1 or IEC 61326-1 |
|
Working temperature and humidity |
-10℃~ 50℃, RH 90% |
|
Storage temperature and humidity |
-20~60℃, RH 90% |

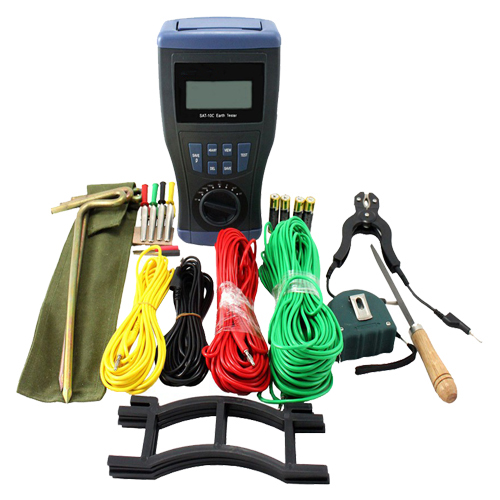

It is only for reference. The actual accessories and quantity are according to demand.
|
No. |
Item |
Qty |
|
1 |
TE-10C |
1 set |
|
Attached Files |
||
|
2 |
User’s manual |
1 pc |
|
3 |
Certificate/Warranty |
1 pc |
|
4 |
Packing list |
1 pc |
|
Attached Accessories |
||
|
5 |
6m black testing line |
1 pc |
|
6 |
6m yellow testing line |
1 pc |
|
7 |
16m red testing line |
1 pc |
|
8 |
30m green testing line |
1 pc |
|
9 |
30cm earth rod |
4 pcs |
|
10 |
Black crocodile clamp |
1 pc |
|
11 |
Small crocodile clamp |
4 pc |
|
12 |
Black testing pen |
1 pc |
|
13 |
Red testing pen |
1 pc |
|
14 |
Winding tools |
4 pcs |
|
15 |
Steel file |
1 pc |
|
16 |
5m steel tape |
1 pc |
|
17 |
Soft case with back band |
1 pc |
TE-10C接地電阻在線測試儀是我公司最新研制生產的數字式精密接地電阻測試儀，它適合通信系統、電力系統、大樓建筑、軍事設施、鐵塔等接地電阻測量。既可以用于二、三或四線法測量接地電阻，也可以測量交流電壓和土壤電阻率。產品設計先進，方便實用。
功能特點：
二線測量時不必打輔助地樁，測試簡單快捷。
具有在線、離線測試功能和數據存儲功能。
結構小巧、強固，適合惡劣環境下使用。
二線和三線測量時能消除測試線電阻。
可以用三線法，四線法測量接地電阻和土壤電阻率；可測量交流電壓。
全自動測量，誤操作時儀器自動停止測量，智能測試保證安全。
二、三線測量接地電阻具有消除線阻（最大可消除5Ω）的功能，可提高測試精度。
測試項目：
接地電阻Re的二、三、四線測量
|
Re范圍(Ω) |
分辨率(Ω) |
精度 |
|
0～19.99 |
0.01 |
±（2％+2d） |
|
20～199.9 |
0.1 |
±（2％+2d） |
|
200～1999 |
1 |
±（2％+2d） |
土壤電阻率ρ測量
|
ρ范圍（Ω） |
分辨率(Ω) |
精 度 |
|
0～19.99 |
0.01 |
±(2％+2d) |
|
20～199.9 |
0.1 |
±(2％+2d) |
|
200～1999 |
1 |
±(2％+2d) |
|
2.00K～19.99K |
10 |
±(2％+2d) |
|
20.0K～125.6K |
100 |
±(2％+2d) |
交流電壓的測量
|
范圍（V） |
分辨率（V） |
精度 |
|
0～400 |
1 |
±(2％+2d) |
圖例：

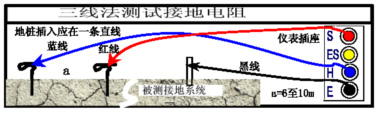

● 二線法測量接地電阻

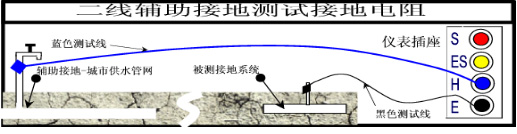

二線法在線測量接地電阻
● 三線法測量接地電阻

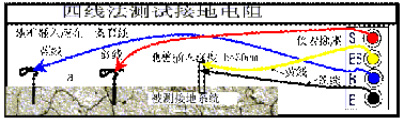

● 四線法測量接地電阻
電阻測量量程：0～2000Ω，分辨率0.1Ω，精度±（2％+2d）
測量電壓：小于80V，正弦波
測量電流：≤10 mA
測量頻率：125Hz±1Hz
測量結果可取2次或5次平均值，消除測試線電阻最大值為5Ω
LCD尺寸：3.5位，字高19mm
存儲容量：15個數據
電壓測量范圍：0～400V，分辨率1V
絕緣強度測試：2500V
電 源：4節5號堿性電池 使用壽命約300小時
最大尺寸：255（長）×140（寬）×60（高）mm
重 量：約1kg （帶附件約3公斤）
標準配置：
|
序號 |
項 目 |
數 量 |
序號 |
項 目 |
數 量 |
|
1 |
TE-10C |
1臺 |
9 |
小鱷魚夾 |
4只 |
|
隨機附件 |
10 |
黑色測試表筆 |
1只 |
||
|
2 |
用戶手冊 |
1份 |
11 |
紅色測試表筆 |
1只 |
|
3 |
6m 黑色測試線 |
1根 |
12 |
繞線箍 |
4個 |
|
4 |
6m 黃色測試線 |
1根 |
13 |
5號堿性干電池 |
4節 |
|
5 |
16m 紅色測試線 |
1根 |
14 |
鋼銼刀 |
1把 |
|
6 |
30m綠色測試線 |
1根 |
15 |
5m鋼卷尺 |
1個 |
|
7 |
30cm接地樁 |
4根 |
16 |
軟包及背帶 |
各1個 |
|
8 |
黑色大鱷魚夾 |
1只 |
|
|
|
